Step-by-Step USB Connection Process

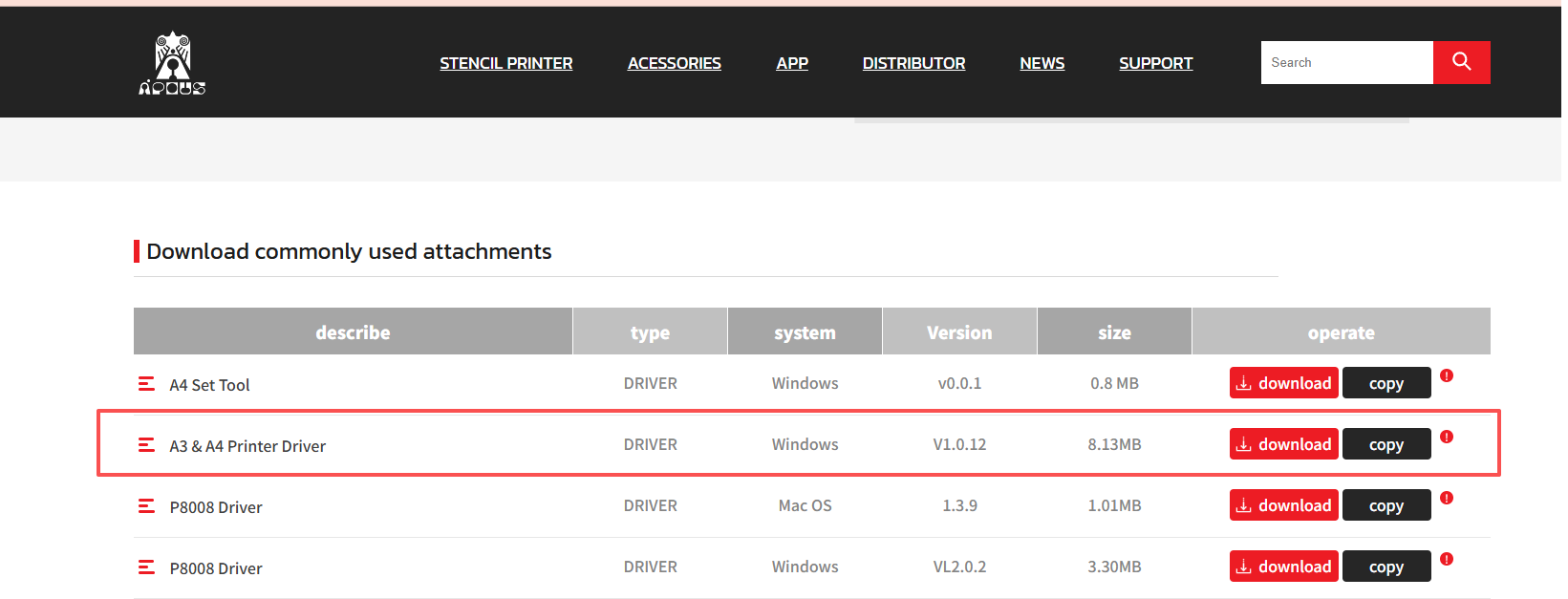

1. Download the Required Driver

• For Windows: Choose "A3 & A4 Printer Driver" (Version V1.0.12, 8.13MB) or other compatible models.

• Click the "download" button to save the driver file to your computer.

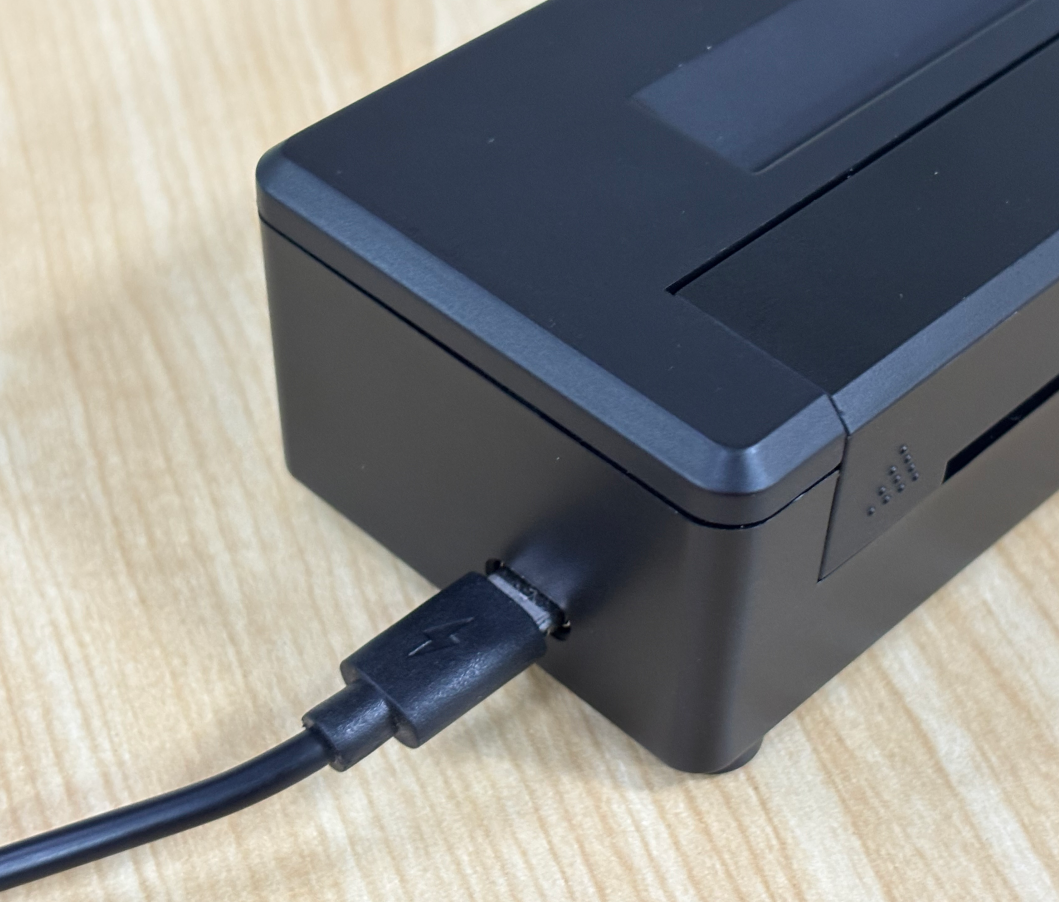

2. Physically Connect the Printer and Computer

Take a USB cable and plug one end into the USB port of the Apous tattoo stencil printer.Connect the other end to an available USB port on your desktop or laptop.Ensure the connection is secure to avoid signal interruptions during setup.

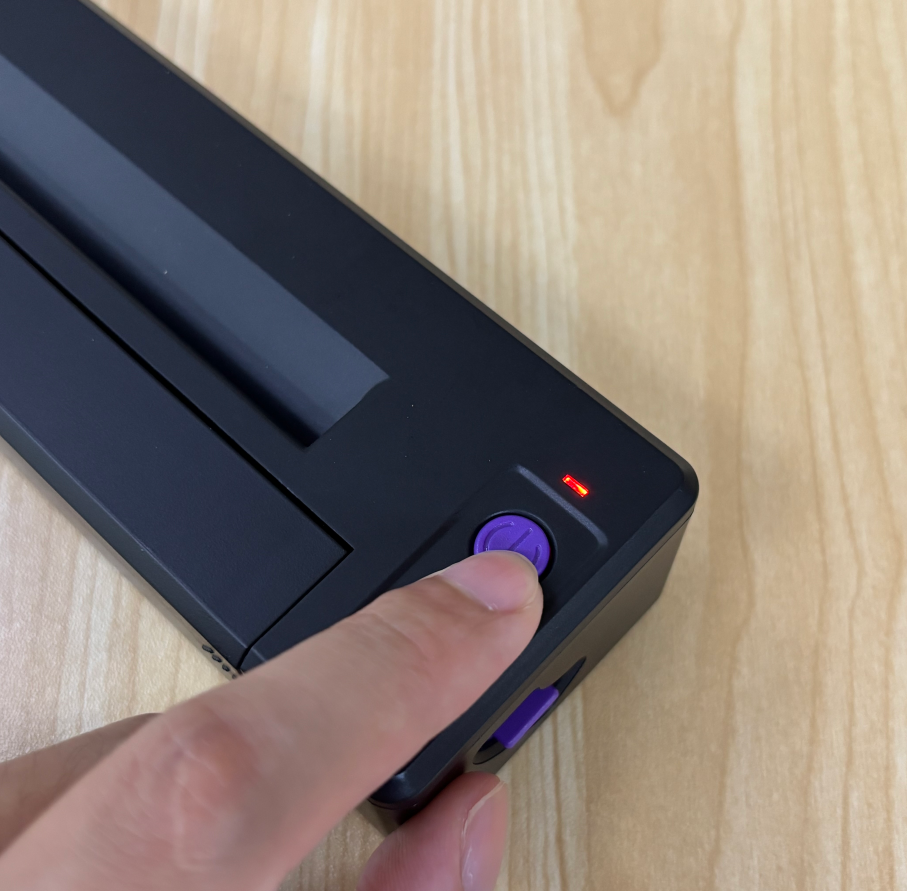

3. Turn On the Printer Power

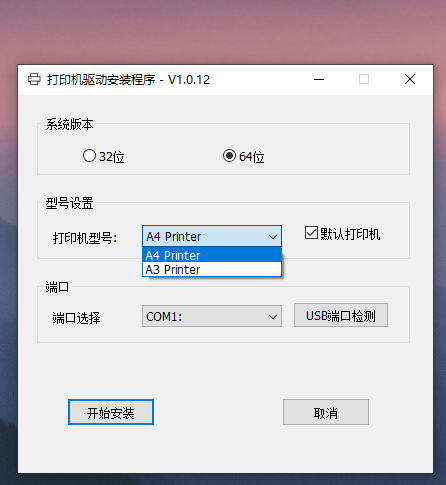

4. Launch the Driver and Select the Printer Model

Find the downloaded driver file on your computer and run the installation program.Once the driver interface opens, select the corresponding printer model: A3 Printer or A4 Printer, based on your device type.

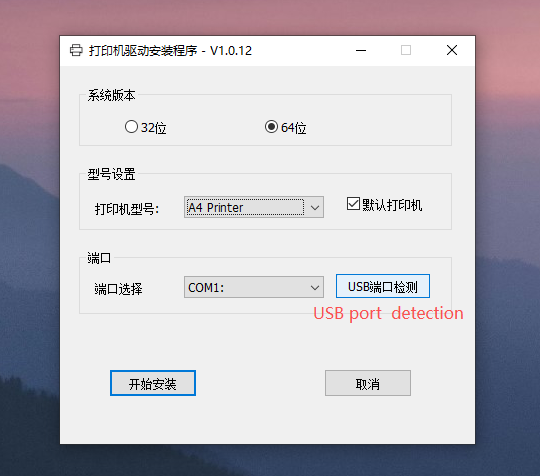

5. Perform USB Port Detection

In the driver interface, find and click the "USB port detection" option.The driver will automatically scan and jump to the correct USB port connected to the printer.This step ensures the computer recognizes the printer successfully.

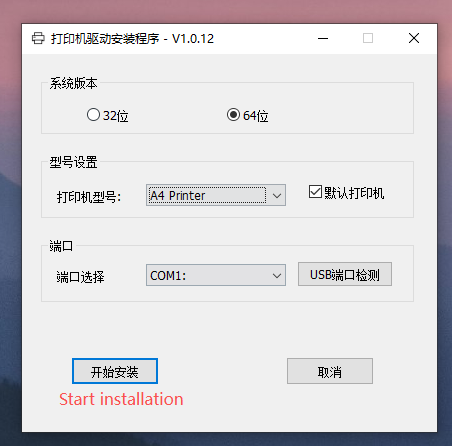

6. Start the Installation

After the port is detected, click the "Start installation" button in the driver.Wait for the driver to complete the installation process (do not disconnect the USB cable or turn off the printer during this period).Once the installation is finished, the connection between your computer and the Apous tattoo stencil printer is successful.

Important Note
